KOSUN MD series high efficiency mud cleaner

KOSUN MD series high efficiency mud cleaner is the second and third level solid control equipment of drilling fluid purification system, which can further separate the smaller particles solid phase contained in the mud treated by shale shaker, so that the mud can enter the fourth level separation equipment.

Features and advantages of KOSUN drilling mud cleaner:

1. Both desander and desilter hydrocyclones are made of polyurethane, high-chromium cast iron or ceramic and other wear-resistant materials;

2. The desander is equipped with 1-3 10° or 12° desander cyclones, which can separate particles of 45-74 microns;

3. The desilter is equipped with 8-20 4″ or 5″ desilter cyclones, which can separate particles of 15-44 microns;

4. During operation, the screen bed angle can be adjusted manually, with reliable performance, compact design and small space consumption;

5. Hook screen can be quickly replaced into a flat screen.

Precautions for mud cleaner operation:

1. Prior to the operation and maintenance of the cleaner, it is necessary to understand its structure and performance, as well as its installation in the well site through the manual;

2. Before using the cleaner, it is necessary to check whether the transport fixed bolt of the vibrating screen has been removed. During operation and maintenance, it is necessary to check whether the installation of the equipment is reliable and whether all parts have been connected in good condition;

3. Understand and be familiar with the working principle, working process, function of operation buttons, working pressure and screen cleaning of the cleaner;

4. Any parts shall not be adjusted or removed during use, and inspection and maintenance shall not be carried out during operation;

5. Make sure the power is off before the mud cleaner is maintained.

Kosun- China Solids Control Leader&Drilling Waste Management Expert

Tel.: +86 29 87304914

Email: sales2@adkosun.com

Contact person: Jinbo Zheng

Contact person: Jinbo Zheng

http://www.kosun.com

http://www.kosuneco.com

Posted on

KOSUN’s mud agitator is suitable for stirring oil drilling fluid.

KOSUN’s mud agitator is suitable for stirring oil drilling fluid.Mud agitator is a continuous and reliable drilling mud solid control system for maintaining the uniformity of drilling fluid and suspending solids.It is mainly used for the stirring and mixing of drilling fluid to prevent the solid phase particles of drilling fluid from being deposited in its tank circulation system, so that the performance of circulating drilling fluid is stable and mixed evenly.

mud agitator

General features:

The mud agitator has the advantages of compact structure, small floor area, large transmission torque, smooth operation and reliable operation.

1. Worm gear reducer.

2. Outdoor explosion-proof motor.

3. Can handle 20ppg drilling fluid.

4. The combination of reducer and explosion-proof motor makes it easy to maintain and is suitable for use under harsh working conditions in the field.

mud agitator

5. Slight stirring, wide sweep, and reduced the starting resistance moment.

6. The motor is placed horizontally for easy installation, adjustment and replacement.

7. The mud agitator is efficient in deep and large containers.

8. Available power: 2..2 ~ 22 kw.

9. Expose more fluid to atmospheric contact, and the mud mixer helps cool the drilling fluid.

10. Compact design, low noise, smooth operation and easy maintenance.

mud agitator

KOSUN can provide customers with oil and gas drilling solid control equipment, centrifuge series products, drilling waste disposal equipment and drilling security equipment four series of 25 categories of products.They are widely used in oil and natural gas drilling, coalbed methane drilling, shale gas drilling, well drilling, geothermal well drilling, trenchless horizontal directional crossing project, mine sand and stone grading treatment, tailings treatment, river cleaning project, industrial wastewater treatment, environmental sewage treatment, waste oil recovery and purification treatment and other fields.

mud agitator

Kosun- China Solids Control Leader&Drilling Waste Management Expert

Tel.: +86 29 87304914

Email: sales2@adkosun.com

Contact person: Jinbo Zheng

Contact person: Jinbo Zheng

http://www.kosun.com

http://www.kosuneco.com

Posted on

The reason for choosing Kosun’s horizontal spiral discharge sedimentation centrifuge

Kosun series horizontal spiral discharge sedimentation centrifuge is a series of centrifuge products developed and improved by our company on the basis of introducing and digesting foreign advanced technology. It is mainly used in the solid-liquid separation field of municipal wastewater, industrial wastewater, chemical industry, food, pharmaceutical, non-metallic ore and similar production processes.

Horizontal centrifuge uses the centrifugal force generated by the high-speed rotating drum to intercept the solid particles in the suspension liquid in the drum and discharge them out of the machine automatically under the action of the force. At the same time, under the action of the centrifugal force, the liquid in the suspension liquid is thrown out through the filtration medium and the hole of the drum, so as to achieve the purpose of solid-liquid separation and filtration.

The main features of Kosun DC series horizontal spiral discharge sedimentation centrifuge：

1.The perfect combination of separation techniques and creativity.Using high quality special as the main components of contact with the material of stainless steel material, special site with cemented carbide parts and ceramic parts, improve the corrosion resistance and wear resistance of the equipment , integrate all kinds of innovative features, higher separation factors, more clear area, optimization of the feed system, driving system and can adjust the parameters in the process of equipment operation control, etc.;

2.It is applied in various fields. Based on the principle of design and manufacturing with minimum resource consumption, various specially designed centrifuges have been widely used in the fields of environmental protection and industrial production；

3.The perfect service system.Kosun provides high quality products and services to customers in all industries, not only high quality products, but more importantly, we sincerely provide customers with a full set of customized solutions with our rich experience, from the design, selection and installation of horizontal screw centrifuges to the construction of a complete set of equipment in special fields.

Kosun- China Solids Control Leader&Drilling Waste Management Expert

Tel.: +86 29 87304914

Email: sales2@adkosun.com

Contact person: Jinbo Zheng

Contact person: Jinbo Zheng

http://www.kosun.com

http://www.kosuneco.com

Posted on

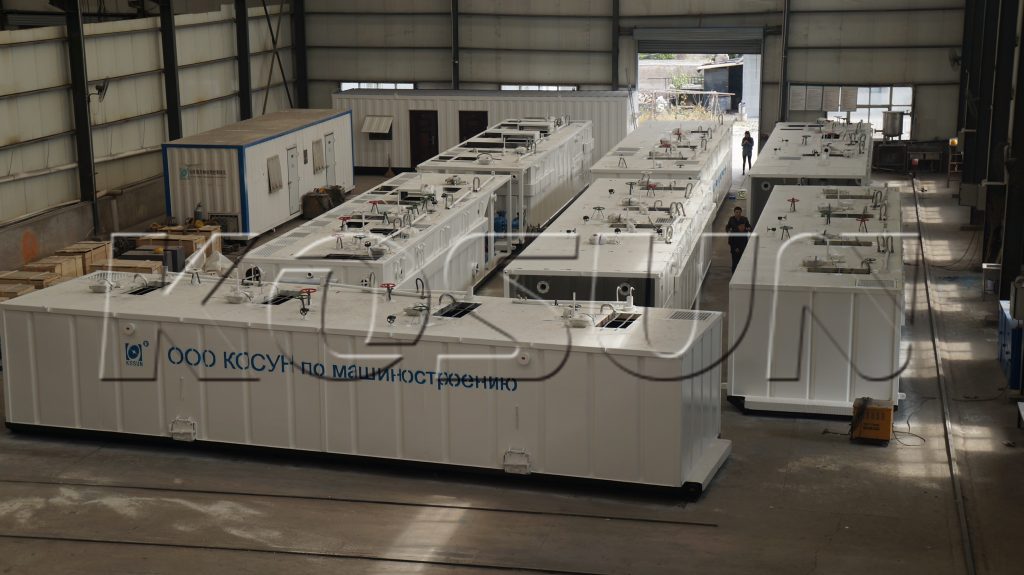

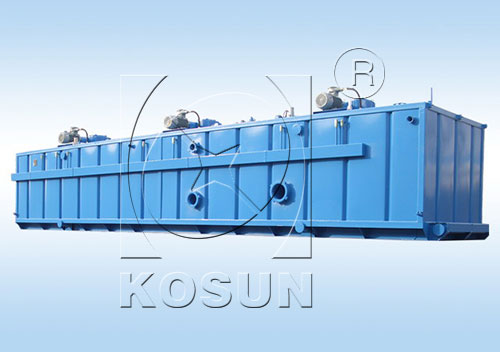

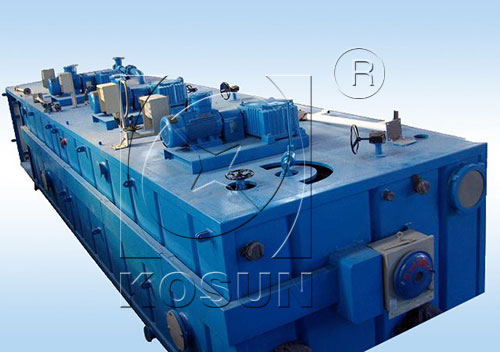

Kosun’s drilling mud treatment equipment: mud tank

The tank surface and the corridor of the mud tank are made of non-slip steel plate and non-slip strip net plate, and the tank surface railings are made of square steel pipe, with barrier-free foldable structure and solid insertion.The tank surface of the mud tank circulation system is equipped with clear water pipeline for cleaning the tank surface and equipment.The upper tank ladder uses channel steel as the main body, anti-skid strip net plate as the pedal, and both sides of the guardrail are provided with insurance hooks.Oil drilling mud tank is equipped with standard sand control and rainproof shed, and the tank is equipped with heat preservation pipeline.

As a mud carrier, the mud tank is an indispensable part of the mud circulation system, which can be used to complete mud weighting, mixing, solid-liquid separation, degassing and other processes.The mud tank carries mud circulation from the wellhead to the mud pump, and solids in the mud are separated step by step through the corresponding solid control equipment on the tank, and the mud is weighted and mixed with the system for deployment, so as to meet the drilling process requirements;The degassing equipment on the mud tank can remove the harmful gas in the mud, so as to ensure the environmental requirements and mud specific gravity of the work site;Mud tank adopts electrical centralized control.In the polar cold region, the tank is equipped with heating system and thermal insulation system.

Generally, the supporting equipment on the mud tank includes: drilling fluid vibrating screen, vacuum degasser, desander, desilter, integrated desander and desilter, liquid and gas separator, stirrer, sand pump, shear pump, centrifuge, electronic ignition device, mixing funnel, jet mixing device, mud gun, etc.

Mud tank is an indispensable equipment in the solid control system. Please pay attention when using it. Do not let the mud precipitate in the mud tank adhere to the tank wall.

Features of Kosun’s drilling mud tank:

1. The selected materials are all international materials, strong and durable;

2. The design of the heating and heat preservation system, can satisfy the using demand of the extremely cold area – 60 ℃;

3. The drilling mud tank base is made of skid-type structure, which can be dragged on site for convenient installation;

4. The positioning rod is connected between the tank and the tank, and the positioning is simple;

5. The built-in pipe manifold facilitates transportation and reduces the number of disassembly.

Posted on

Our desander can meet all your requirements for desander.

Kosun Environmental Engineering has solid and liquid separation core technology, driven by technology equipment manufacturing and engineering services, the current business has been involved in engineering machinery, industrial sludge treatment, river and lake sludge disposal, urban sludge treatment, soil remediation and tailings comprehensive utilization of six fields.With “Black Rhino” brand as registered trademark, the company has dozens of separation machinery related technology, won the shaanxi province famous trademark, xi ‘an famous brand products, small giant technology enterprises, xi ‘an industry leader and other honorary titles.
Kosun DS series desander is a two stage solid control equipment for drilling slurry treatment.Commonly used hydrocyclones with diameters of 12″ and 10″ are used to separate solid particles with particle sizes of 47-76µm in drilling mud.
Kosun DS series sand removal cleaner is a two-stage solid control equipment for drilling mud treatment. It is used to separate the solid particles with particle size of 47-76µm in drilling slurry.Application fields:large-scale oil drilling rig supporting, large-scale trenchless drilling rig supporting,shield engineering supporting, river dredging project supporting, etc.
Features of the desander cleaner: 1. Separate solid particles with particle size of 47-76µm in drilling mud; 2. Simple operation and maintenance, compact structure, small space occupied; 3. desanders with different specifications and handling capacities can be produced according to customers’ requirements; 4. The material can be polyurethane, high-chromium iron or ceramic wear-resistant materials; 5. The number and material of customized hydrocyclone can be selected..
Posted on

Kosun KDS-500 Shield Slurry Treatment System

Since the introduction of slurry balance shield, the slurry separation and treatment system and equipment have appeared.During the construction of slurry shield, slurry treatment is one of the important factors affecting the normal tunneling of the shield, and directly affects the construction schedule, construction cost and environmental protection.The application of slurry shield, along with the tunnel construction, is gradually developed from the city edge to the city center.Due to the limitation of the construction site, the mud water treatment equipment must cover a small area and have a high treatment rate, so an efficient and integrated slurry treatment equipment has become the first choice of the owner and the construction unit.

Xi’an Kosun Environmental Engineering co.,LTD,It is a professional company providing integrated solutions of solid waste treatment in the field of energy conservation and environmental protection, focusing on the development and service of complete sets of technologies and equipment such as sludge reduction and resource utilization.

Kosun Environmental Engineering co., ltd. helps customers with sludge reduction and disposal services, including: general contracting of sludge treatment, sludge treatment mobile site services, sludge treatment package solutions.

Kosun KDS-500 shield slurry treatment system is a modular design system.The system is designed for mud purification in medium sized slurry balance shield construction projects.The KDS-500 system is composed of a coarse vibrating screen module and two sets of sand removal modules. The coarse vibrating screen module is equipped with a coarse screen for removing large particles, and the sand removal module is equipped with a desander hydrocyclone and a fine vibrating screen.

The slurry falls into the collecting box through the coarse vibrating screen, and then is separated and transported to two sets of sand removal modules through two connecting pipes. The sand removal module is equipped with a desander hydrocyclone, which can remove the sand in the slurry.After two levels of treatment, the effect of repeated circulation can be achieved.
